BLUETTI

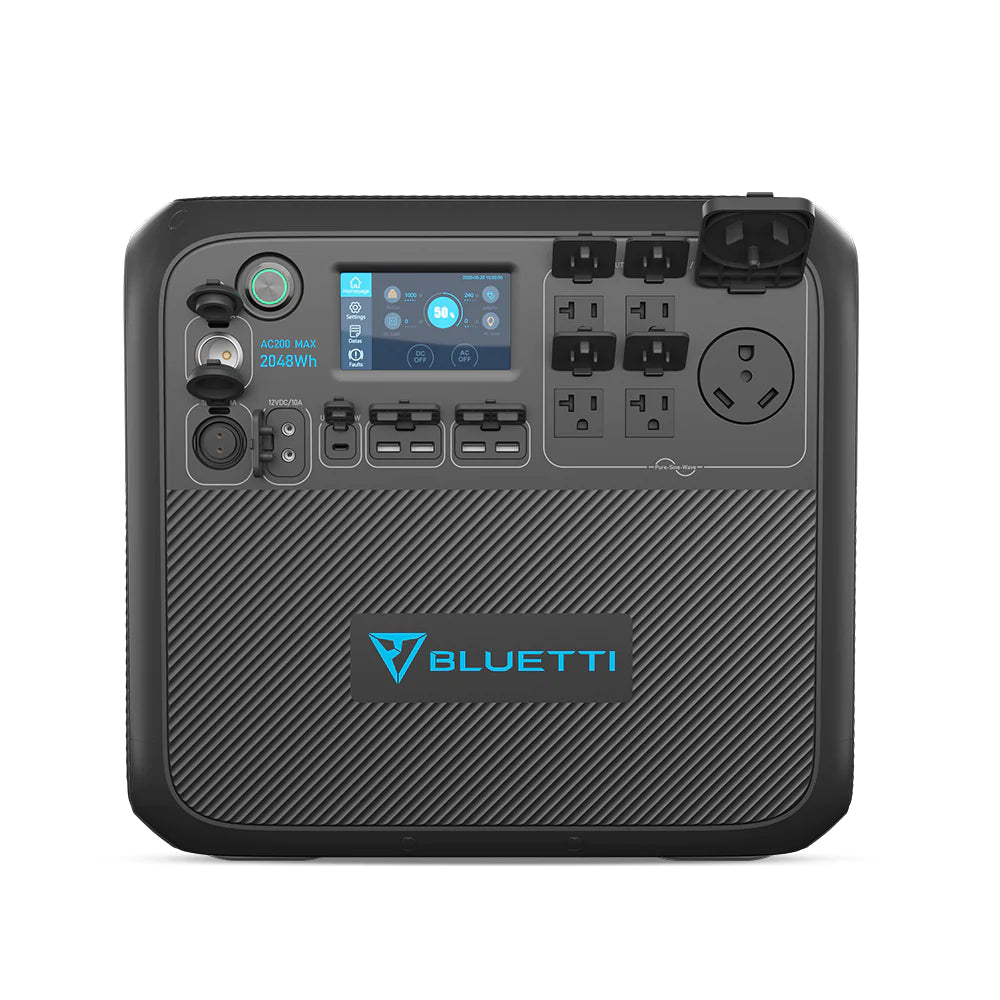

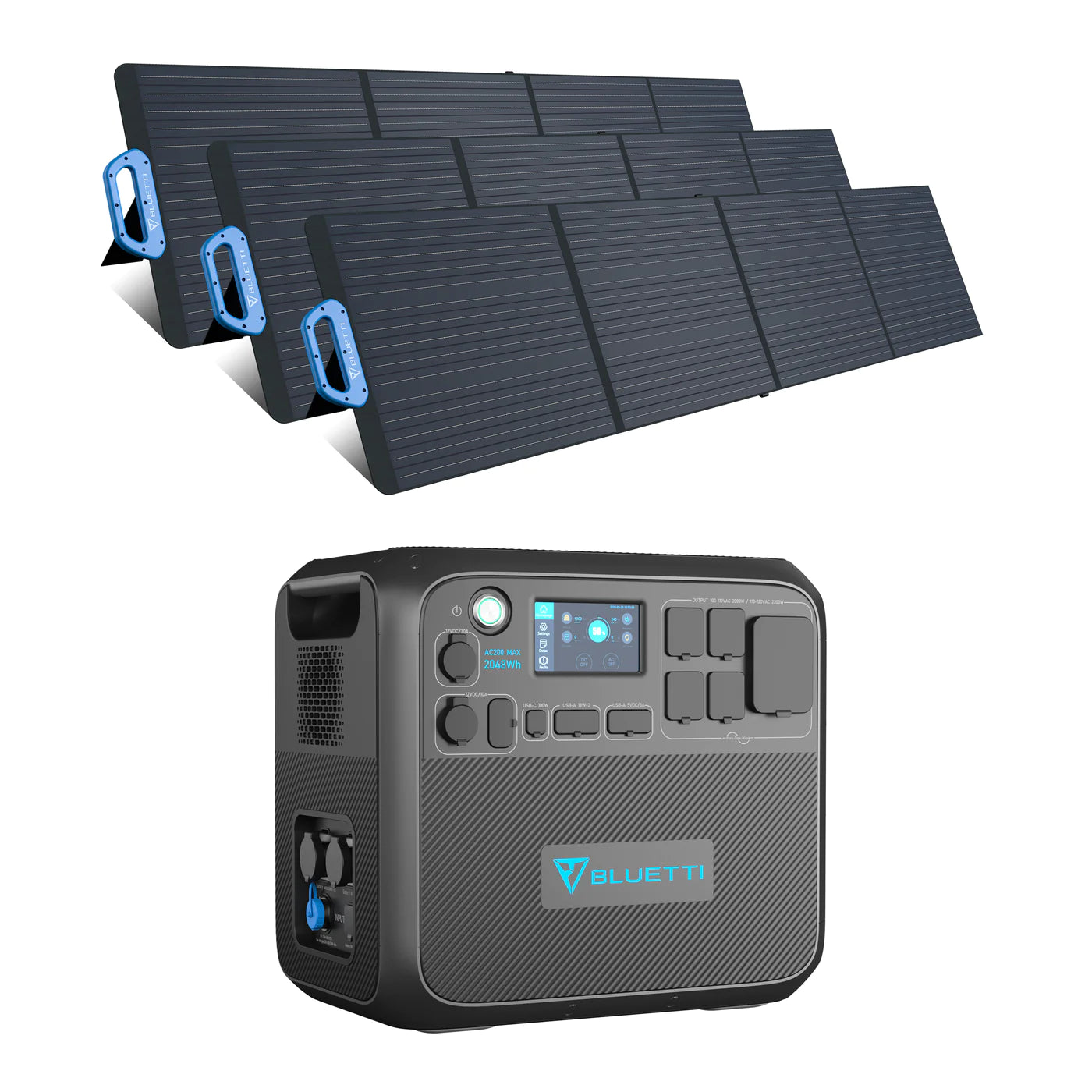

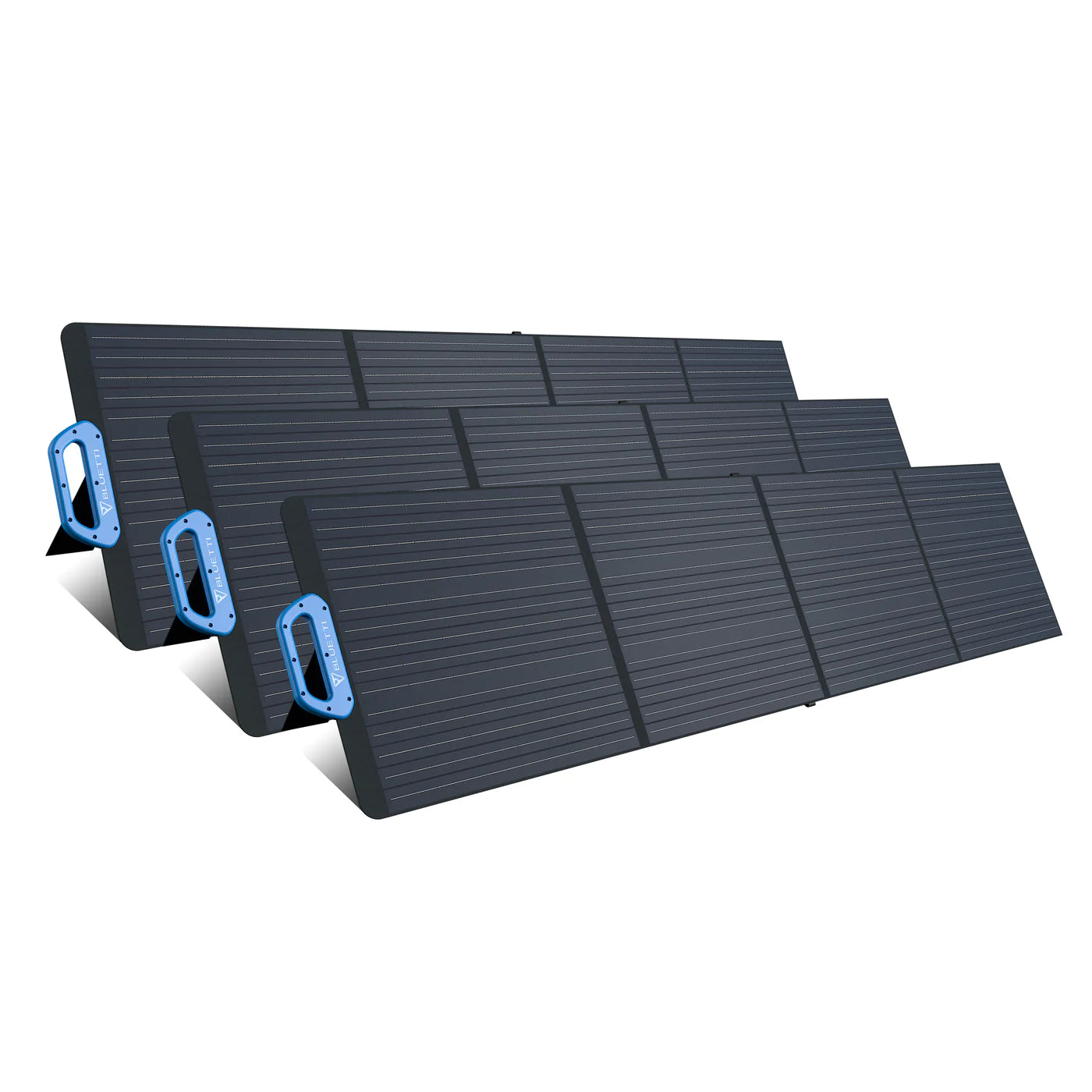

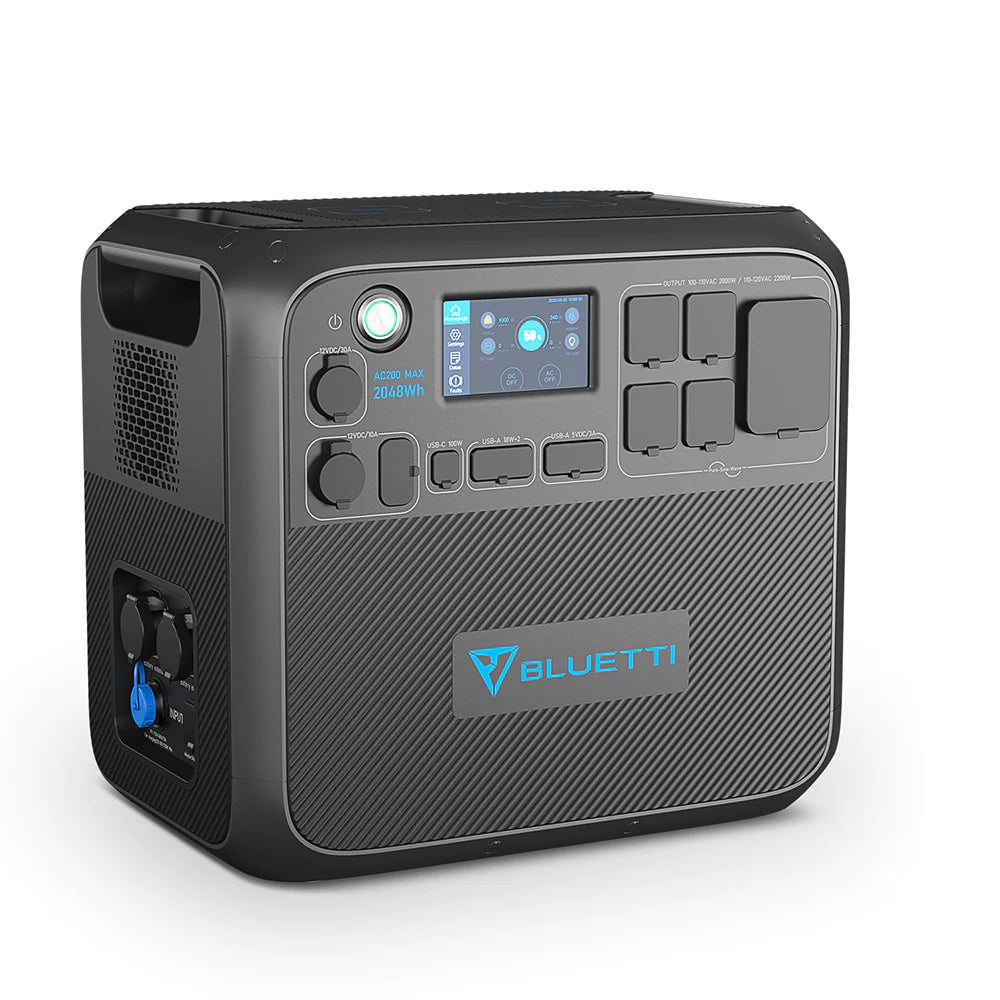

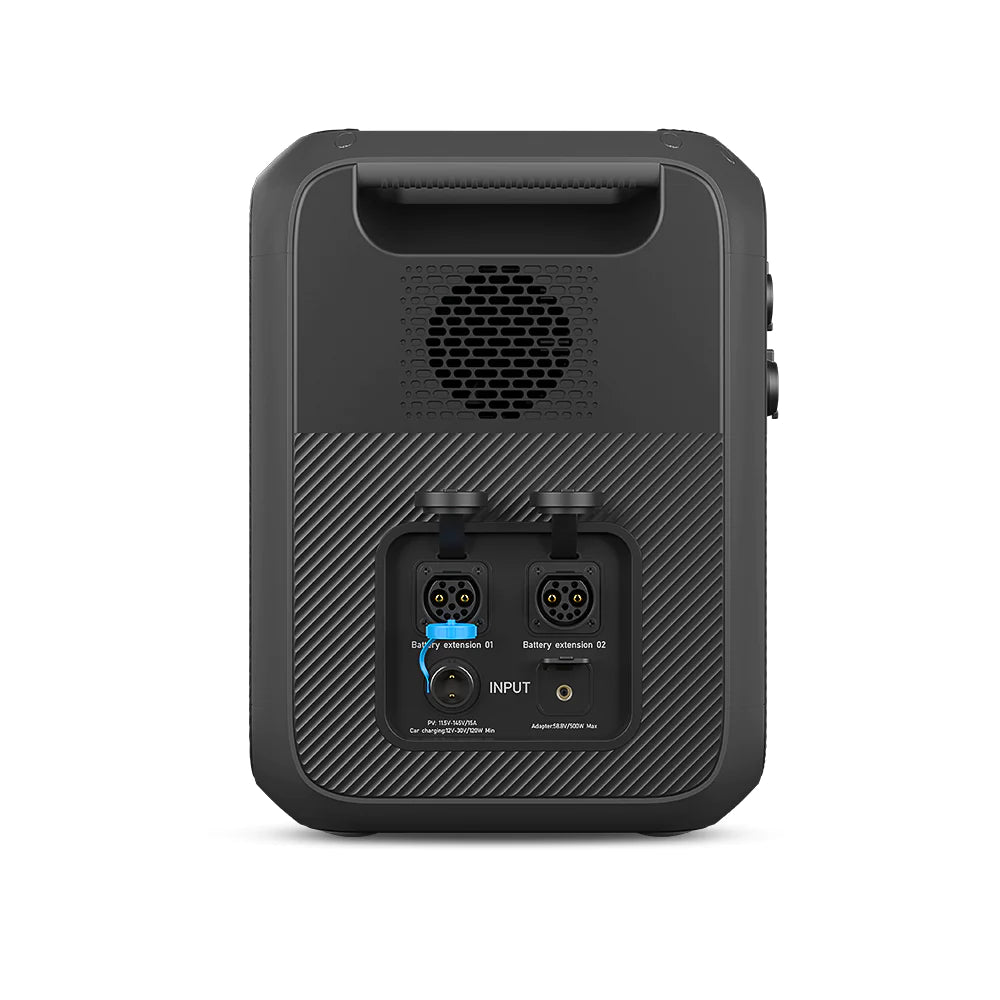

BLUETTI AC200MAX + 3*PV200 | Solar Generator Kit

BLUETTI AC200MAX + 3*PV200 | Solar Generator Kit

Regular price $3,006.00 USD
Regular price Sale price $3,006.00 USD
Sale Sold out
Shipping calculated at checkout.
  • 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
  • 2,048Wh Capacity
  • LiFePO4 Battery with 3,500+ Life Cycles to 80%
  • Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
  • 900W Max. Solar Input
  • 1400W Max. Fast Dual Charging (Solar + AC Adapter)
  • Smart Control & Monitor in BLUETTI App

BATTERY INFO

Capacity: 2,048Wh (51.2V, 40Ah)
Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,500+ Cycles to 80% Original Capacity
Shelf-life: Recharge to 80% Every 3-6 Months
Management System: MPPT Controller, BMS, etc

OUTPUT

AC Outlets: 4 x 120V/20A Outlets 1 x 120V/30A NEMA TT-30 2200W In Total
Inverter Type: Pure Sine Wave
Surge Power: 4800W
USB-C Port: 1 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A 2 x 18W USB-A
12V DC Outlets: 1 x 12V/30A (RV Outlet) 1 x 12V/10A (Car Outlet) 2 x 12V/10A DC 5521 (5.5mm Outlet)*All Regulated.
Wireless Charging Pad: 2 x 15W Max. (For Each)

INPUT

AC Adapter Input: 500W.
Solar Input: 900W Max., VOC 10-145VDC, 15A
Car Input: 12/24V from Cigarette Lighter Port
Max Input: 1,400W, with AC+Solar Input

RECHARGE TIME

AC Adapter (500W): ≈5.5~6 Hours
Solar (900W): ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours
AC Adapter + Solar (1400W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Dual AC Adapters (1000W): ≈3~3.5 Hours (Extra adapter is REQUIRED)

GENERAL

240V Split Phase Bonding: No. Need 240V power source? Explore here.
Scalability: Expandable w/ Up to 2 x B230 or 2 x B300
Pass-through Charging: Yes
Weight: 61.9lbs (28.1kg)
Dimensions (LxWxD): 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)
Operating Temperature: -4-104℉ (-20-40℃)
Storage Temperature: 14-113℉ (-10-45℃)
Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65
Warranty: 48 Months (Learn more about BLUETTI warranty policy)
